HYDRAFORCE
5028197
$206.00 USD
- HYDRAFORCE
- Material:5028197
- Model:SV10-47A-8T-N-24DG SOLENOID VALVE
- Summary:SOLENOID CARTRIDGE VALVE 3 POSITION, 4 PORT TANDEM CENTER
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

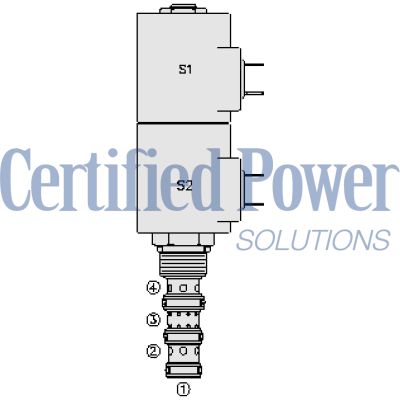

The Hydraforce 5028197 (5028197) is a solenoid-operated, 4-port, 3-position, direct-acting spool-type screw-in hydraulic cartridge valve designed for robust and versatile performance in hydraulic systems. This valve effectively manages the direction of the flow in hydraulic circuits. In its default state when de-energized, the SV1047AX configuration blocks cylinder ports while permitting flow from port 3 to port 1. Energizing coil 1 changes the flow direction from port 3 to port 2 and from port 4 to port 1, whereas activating coil 2 allows flow from port 3 to port 4 and from port 2 to port 1. This model is particularly effective in applications where work port flows are unequal due to varying cylinder ratios, with a recommendation that higher return flows should be directed to port 2 for optimal performance. The valve features continuous-duty rated solenoids and a hardened precision spool and cage which enhance its durability and lifespan. It also offers various customization options including optional coil voltages, terminations, and a manual override option. Moreover, the Hydraforce 5028197 includes optional waterproof E-Coils that are rated up to IP69K, ensuring protection against ingress of dust and high-temperature high-pressure water jets. Its efficient wet-armature construction along with the capability for all ports to be fully pressurized supports a broad range of operational demands. Additionally, its cartridges are voltage interchangeable which adds flexibility across different systems setups. The unitized molded coil design coupled with an industry common cavity makes this valve a reliable choice for integrating into various hydraulic systems requiring precise control over fluid dynamics.
The Hydraforce 5028197 (5028197) is a solenoid-operated, 4-port, 3-position, direct-acting spool-type screw-in hydraulic cartridge valve designed for robust and versatile performance in hydraulic systems. This valve effectively manages the direction of the flow in hydraulic circuits. In its default state when de-energized, the SV1047AX configuration blocks cylinder ports while permitting flow from port 3 to port 1. Energizing coil 1 changes the flow direction from port 3 to port 2 and from port 4 to port 1, whereas activating coil 2 allows flow from port 3 to port 4 and from port 2 to port 1. This model is particularly effective in applications where work port flows are unequal due to varying cylinder ratios, with a recommendation that higher return flows should be directed to port 2 for optimal performance. The valve features continuous-duty rated solenoids and a hardened precision spool and cage which enhance its durability and lifespan. It also offers various customization options including optional coil voltages, terminations, and a manual override option. Moreover, the Hydraforce 5028197 includes optional waterproof E-Coils that are rated up to IP69K, ensuring protection against ingress of dust and high-temperature high-pressure water jets. Its efficient wet-armature construction along with the capability for all ports to be fully pressurized supports a broad range of operational demands. Additionally, its cartridges are voltage interchangeable which adds flexibility across different systems setups. The unitized molded coil design coupled with an industry common cavity makes this valve a reliable choice for integrating into various hydraulic systems requiring precise control over fluid dynamics.
Unit weight:
0.28 kg (0.61 lb)
Internal wetted surface area:
245 cm² (38.0 in²)
| Ratings | Pressure Ratings Pressure rating: 250 bar (3625 psi) Proof pressure: 344 bar (5000 psi) Burst pressure: 779 bar (11.300 psi) Flow Ratings Flow rating: See "performance range" Maximum internal leakage: 328 ml/min (20 in³/min) At 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Performance |  |
| Installation Specifications | Cavity:
VC10-4 10-size-4-way Cavities Cartridge installation torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) Maximum allowable torque: 67.8 N-m (50 ft-lb) Coil nut torque: 6.8 to 9.5 N-m (5 to 7 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION SV10-47AE-H-J-L E Manual Override E B Momentary Push/Pull Override, 1.5" Diameter Aluminum Knob E BLANK NONE E K Three Position Override, 1.5" Diameter Aluminum Knob E M Momentary Push/Pull Override, Red Knurled Knob H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil, D-Coil Spacer L 0E No Coil, E-Coil Spacer L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DR/D 10 VDC, D-Coil, Deutsch with Diode L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 10ER/Z 10 VDC, E-Coil, Deutsch with Zener Diode L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DL/W/D 12 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 12DR 12 VDC, D-Coil, Deutsch L 12DR/D 12 VDC, D-Coil, Deutsch with Diode L 12DR/Z 12 VDC, D-Coil, Deutsch with Zener Diode L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12EL/W/Z 12 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 12EL/Z 12 VDC, E-Coil, Dual Lead Wires with Zener Diode L 12ER 12 VDC, E-Coil, Deutsch L 12ER/Z 12 VDC, E-Coil, Deutsch with Zener Diode L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 12EY/Z 12 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 20DR/D 20 VDC, D-Coil, Deutsch with Diode L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DL/W/D 24 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DR/D 24 VDC, D-Coil, Deutsch with Diode L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24EL/W/Z 24 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 24ER 24 VDC, E-Coil, Deutsch L 24ER/Z 24 VDC, E-Coil, Deutsch with Zener Diode L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 24EY/Z 24 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 36DS 36 VDC, D-Coil, Dual Spade L 115AG 115 VAC, D-Coil, DIN 43650 L 115AP 115 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires L 230AG 230 VAC, D-Coil, DIN 43650 L 230AP 230 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires |
Seal kit:
SK10-4X-MMM
X = seal option
Seal kit installation instructions
Housings:
Available
10-4w valve bodies
Coils:
10 size D
coils
10 size E
coils
