HYDRAFORCE
5028189

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

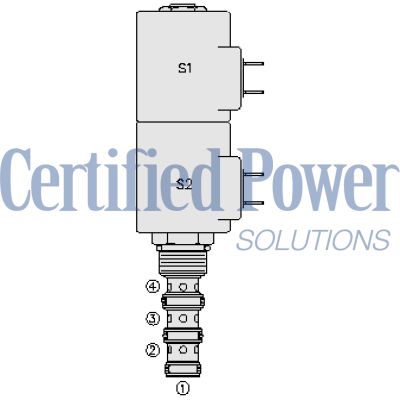

The Hydraforce 5028189 (5028189) is a solenoid-operated, 4-port, 3-position, direct acting spool type screw-in hydraulic cartridge valve designed for robust and efficient control in hydraulic systems. This valve features a unique configuration where, in its de-energized state, it connects all ports allowing for passive circulation of fluids. Upon activation of coil 1, the valve directs flow from port 3 to port 4 and from port 2 to port 1. Conversely, energizing coil 2 changes the flow direction from port 3 to port 2 and from port 4 to port 1. This model is distinguished by its continuous-duty rated solenoid and a hardened precision spool and cage which enhance its durability and lifespan under rigorous conditions. It is designed with efficiency in mind, featuring wet-armature construction that minimizes leakage and maximizes performance. The SV1047BX model offers flexibility in electrical connections with optional coil voltages and terminations available to suit various operational requirements. Additionally, the manual override option presents an added level of operational control by allowing manual manipulation of the spool position; however, shifting the spool completely requires additional effort. For environments requiring rugged components, optional waterproof E-Coils are offered that can withstand up to IP69K protection standards. This valve's compatibility with industry common cavity allows for easier integration or replacement in multiple applications without the need for substantial modifications to existing systems. Moreover, all ports on this valve can be fully pressurized, enhancing its versatility across different hydraulic circuits. The unitized molded coil design not only simplifies installation but also ensures reliability through reduced potential points of failure.
