HYDRAFORCE
5027883
$140.75 USD
- HYDRAFORCE
- Material:5027883
- Model:SV10-41-8T-N-12DG SOLENOID VALVE
- Summary:SOLENOID VALVE SPOOL, 4 PORT, 2 POSITION
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce 5027883 (5027883) is a solenoid-operated, 4-port, 2-position, direct-acting spool type, screw-in hydraulic cartridge valve designed for robust performance in diverse hydraulic systems. This valve operates by blocking flow to all ports when de-energized. Upon energization, the spool shifts to allow flow between port 3 and port 4 and from port 2 to port 1, enabling flexible control over fluid direction and flow within the system. Key features of the Hydraforce 5027883 include a continuous-duty rated coil that ensures reliable operation even under extended periods of use. The valve's components, such as the hardened precision spool and cage, are crafted for durability and long service life. It also boasts efficient wet-armature construction and interchangeable voltage cartridges that enhance versatility and ease of use across different settings. Additionally, all ports on the valve can withstand full pressurization which enhances its applicability in various high-pressure scenarios. The unitized, molded coil design contributes to the overall reliability and performance consistency of the valve. For environments requiring robust specifications, there are optional waterproof E-Coils available that are rated up to IP69K. Furthermore, this model offers a manual override option which provides additional control flexibility in managing hydraulic flows manually during system checks or emergencies. The industry-common cavity design of the Hydraforce 5027883 ensures it can be integrated or replaced easily within standard setups without requiring extensive modifications. This makes it an ideal choice for applications needing a dependable solution for directing fluid flow in hydraulic circuits efficiently.
The Hydraforce 5027883 (5027883) is a solenoid-operated, 4-port, 2-position, direct-acting spool type, screw-in hydraulic cartridge valve designed for robust performance in diverse hydraulic systems. This valve operates by blocking flow to all ports when de-energized. Upon energization, the spool shifts to allow flow between port 3 and port 4 and from port 2 to port 1, enabling flexible control over fluid direction and flow within the system. Key features of the Hydraforce 5027883 include a continuous-duty rated coil that ensures reliable operation even under extended periods of use. The valve's components, such as the hardened precision spool and cage, are crafted for durability and long service life. It also boasts efficient wet-armature construction and interchangeable voltage cartridges that enhance versatility and ease of use across different settings. Additionally, all ports on the valve can withstand full pressurization which enhances its applicability in various high-pressure scenarios. The unitized, molded coil design contributes to the overall reliability and performance consistency of the valve. For environments requiring robust specifications, there are optional waterproof E-Coils available that are rated up to IP69K. Furthermore, this model offers a manual override option which provides additional control flexibility in managing hydraulic flows manually during system checks or emergencies. The industry-common cavity design of the Hydraforce 5027883 ensures it can be integrated or replaced easily within standard setups without requiring extensive modifications. This makes it an ideal choice for applications needing a dependable solution for directing fluid flow in hydraulic circuits efficiently.
Unit weight:
0.20 kg (0.43 lb)
Internal wetted surface area:
197 cm² (30.5 in²)
| Ratings | Pressure Ratings Pressure rating: 207 bar (3000 psi) Proof pressure: 276 bar (4000 psi) Burst pressure: 621 bar (9000 psi) Flow Ratings Flow rating: 22.7 lpm (6 gpm) Maximum internal leakage: 5 in³/min At 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals |
| Operating Parameters | Maximum operating contamination level:
Iso4406 18/16/13 0.712 mg Maximum allowable contaminant 0.5 mm (0.02 in) Absolute maximum particle size. Packaging to maintain cleanliness level during shipping and handling All surfaces in contact with working fluid to meet JDS-GL69, 5.6 cleanliness level |
| Electrical Parameters | Pull in voltage:
Pull-in 85% of nominal at 40 °C (104 °F) Drop out voltage: 5% of nominal |

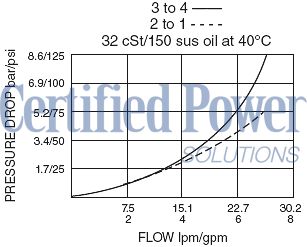

| Performance |  |
| Installation Specifications | Cavity:
VC10-4 10-size-4-way Cavities Cartridge installation torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) Maximum allowable torque: 67.8 N-m (50 ft-lb) Coil nut torque: 6.8 to 9.5 N-m (5 to 7 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION SV10-41E-H-J-L E Manual Override E BLANK NONE E J Momentary Pull Override, #10-32 threads E M Two Position Override, Red Knurled Knob E Y Momentary Pull Override, Red Knurled Knob H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DR/D 10 VDC, D-Coil, Deutsch with Diode L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 10ER/Z 10 VDC, E-Coil, Deutsch with Zener Diode L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DL/W/D 12 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 12DR 12 VDC, D-Coil, Deutsch L 12DR/D 12 VDC, D-Coil, Deutsch with Diode L 12DR/Z 12 VDC, D-Coil, Deutsch with Zener Diode L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12EL/W/Z 12 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 12EL/Z 12 VDC, E-Coil, Dual Lead Wires with Zener Diode L 12ER 12 VDC, E-Coil, Deutsch L 12ER/Z 12 VDC, E-Coil, Deutsch with Zener Diode L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 12EY/Z 12 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 20DR/D 20 VDC, D-Coil, Deutsch with Diode L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DL/W/D 24 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DR/D 24 VDC, D-Coil, Deutsch with Diode L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24EL/W/Z 24 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 24ER 24 VDC, E-Coil, Deutsch L 24ER/Z 24 VDC, E-Coil, Deutsch with Zener Diode L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 24EY/Z 24 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 36DS 36 VDC, D-Coil, Dual Spade L 115AG 115 VAC, D-Coil, DIN 43650 L 115AP 115 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires L 230AG 230 VAC, D-Coil, DIN 43650 L 230AP 230 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires |
Seal kit:
SK10-4X-MMM
Seal kit installation instructions
Housings:
Available
10-4w valve bodies
Coils:
10 size D
coils
10 size E
coils
