FLEXTRAL
VZ-24

$80.24*Starting at $80.24 per foot
  • FLEXTRAL
  • Material:VZ-24
  • Summary:VZ

Due to extremely high demand, please call 888-905-7411 for availability

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Flextral directly.***

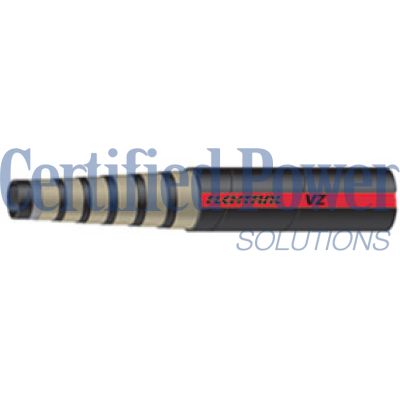

The Flextral VZ-24 (VZ-24) is a robust hydraulic hose designed for high-pressure applications, featuring a 1.5-inch internal diameter and capable of handling maximum working pressures up to 5000 psi with a burst pressure limit of 20000 psi. This model, part of the VZ series, is built to exceed the SAE 100R13 standards, ensuring it meets rigorous quality and safety specifications. The hose has a nitrile tube with six spirals of high-tensile steel wire reinforcement, making it exceptionally strong and durable. The outer cover of the VZ-24 is crafted from black synthetic rubber that is resistant to oils, abrasions, and varying weather conditions, and it's also MSHA approved. This makes the hose suitable for use in environments where exposure to harsh elements is common. With an outer diameter of 57.60 mm and a minimum bend radius of 500 mm, it offers flexibility without sacrificing strength. This hose is ideal for hydraulic systems that use petroleum or water-glycol based fluids and can also be used with fuel and lubricating oils. It adheres to SAE J1942/1 USCG H standards, making it suitable for marine applications as well. The Flextral VZ-24 comes in various lengths ranging from a minimum of 12 inches to a maximum of 1200 inches and is typically packaged in coils for convenience and ease of handling. Overall, the Flextral VZ-24 hydraulic hose provides high-performance capabilities ideal for demanding applications requiring durability, flexibility, and reliability in managing high-pressure fluids efficiently.

VZ Exceeds 100R13

Meets or exceeds the requirements of SAE 100R13.

Tube: Nitrile
Reinforcement: Six spirals of high-tensile steel wire
Cover: Black, oil, abrasion and weather resistant synthetic rubber, MSHA approved
Temperature: -40°C to +121°C (-40°F to +250°F)
Packaging: Coils
Application: Hydraulic systems with petroleum or water/glycol based fluids. For fuel and lubricating oils. SAE J1942/1 USCG – H accepted.

PART NUMBER HOSE I.D. HOSE O.D. MAX W.P. MIN. BURST PRESSURE MIN. BEND RADIUS WEIGHT ONE PIECE Skive
(in) (in) (mm) (psi) (psi) (in) (mm) (lbs/ft) COUPLINGS
VZ-241122.2657.6050002000019.6500.003.35coupling_VZ
