The Flextral PX250-16 (PX250-16) is a high-performance hydraulic hose designed for various applications requiring a compact, high-pressure hose. This model, part of the PX250 series, features an internal diameter of 1 inch and an outer diameter of 1.43 inches (36.20 mm). It is built to sustain a maximum working pressure of 3000 psi with a minimum burst pressure of 12000 psi, ensuring reliability and safety in demanding environments. The hose's construction includes two braids of high-tensile steel wire reinforcement and a nitrile tube that provides excellent compatibility with petroleum-based hydraulic fluids, gasoline, water, diesel fuels, and lubricating oils. Additionally, it supports biodegradable hydraulic oil and fire-resistant synthetic polyol esters. The cover is made from black synthetic rubber that is oil, high abrasion, and weather resistant; it also carries an MSHA approval for quality assurance. With a minimum bend radius of 5.9 inches (150 mm), the PX250-16 offers flexibility in tight spaces making it suitable for various routing needs. It can operate effectively within a temperature range from -40°C to +100°C (-40°F to +212°F), with intermittent service up to 120°C (248°F). This hose meets or exceeds the requirements of SAE 100R16 and EN857 2SC DIN 20022 2SNISO 1436 Type 2 standards. Typical applications include conveying petroleum-based hydraulic fluids used in construction equipment, agricultural machinery, and industrial plant installations where space constraints require a compact hose solution that does not compromise on performance. The PX250-16’s versatility extends to marine applications as well, being SAE J19421 USCG H accepted for marine use.
The Flextral PX250-16 (PX250-16) is a high-performance hydraulic hose designed for various applications requiring a compact, high-pressure hose. This model, part of the PX250 series, features an internal diameter of 1 inch and an outer diameter of 1.43 inches (36.20 mm). It is built to sustain a maximum working pressure of 3000 psi with a minimum burst pressure of 12000 psi, ensuring reliability and safety in demanding environments. The hose's construction includes two braids of high-tensile steel wire reinforcement and a nitrile tube that provides excellent compatibility with petroleum-based hydraulic fluids, gasoline, water, diesel fuels, and lubricating oils. Additionally, it supports biodegradable hydraulic oil and fire-resistant synthetic polyol esters. The cover is made from black synthetic rubber that is oil, high abrasion, and weather resistant; it also carries an MSHA approval for quality assurance. With a minimum bend radius of 5.9 inches (150 mm), the PX250-16 offers flexibility in tight spaces making it suitable for various routing needs. It can operate effectively within a temperature range from -40°C to +100°C (-40°F to +212°F), with intermittent service up to 120°C (248°F). This hose meets or exceeds the requirements of SAE 100R16 and EN857 2SC DIN 20022 2SNISO 1436 Type 2 standards. Typical applications include conveying petroleum-based hydraulic fluids used in construction equipment, agricultural machinery, and industrial plant installations where space constraints require a compact hose solution that does not compromise on performance. The PX250-16’s versatility extends to marine applications as well, being SAE J19421 USCG H accepted for marine use.

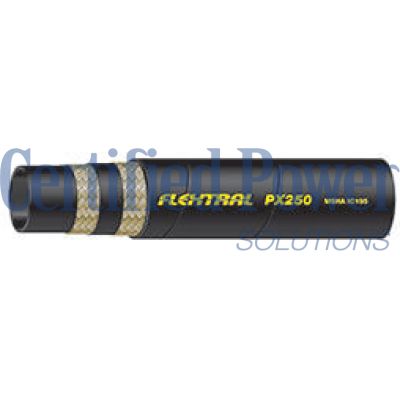

PX250 100R16 Compact Two Wire Braid Hose
Meets or exceeds the requirements of SAE 100R16 and EN857 2SC DIN 20022 2SN-ISO 1436 Type 2.
Tube: Nitrile
Reinforcement: Two braids of high-tensile steel wire
Cover: Black, oil, high-abrasion and weather resistant synthetic rubber, MSHA approved
Temperature: -40°C to +100°C (-40°F to +212°F) intermittent use up to +120°C (+248°F)
Packaging: ¼” - 1” Reels; 1¼” - 2” Coils
Application: Petroleum based hydraulic fluids, gasoline, water, diesel fuels and lubricating oils, biodegradeable hydraulic oil, fire resistant synthetic polyol esters. SAE J1942/1 USCG – H accepted.
| PART NUMBER | HOSE I.D. | HOSE O.D. | MAX W.P. | MIN. BURST PRESSURE | MIN. BEND RADIUS | WEIGHT | ONE PIECE | ||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (in) | (mm) | (psi) | (psi) | (in) | (mm) | (lbs/ft) | COUPLINGS | |
| PX250-16 | 1 | 1.43 | 36.20 | 3000 | 12000 | 5.9 | 150.00 | 0.87 | coupling_PX250 |
